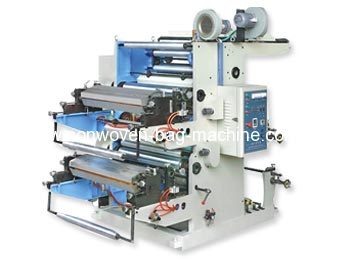

Two Color Flexo Printing Machinery

Price: 5000.0~20000.0 USD
Payment Terms: T/T,L/C,WU
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: YT-2800
Packing: wooden case packing or plas...
Brand Name: HUABO
Type: Flexographic Printer
Condition: New
Color & Page: Two Colors
After-sales Service Provided: Engineers available to serv...
Production Capacity: 15Set/Sets/Month
Delivery Date: 15-20 days
Place of Origin: Zhejiang, China (Mainland)
Usage: Letter press Machine
Automatic Grade: Automatic
Plate Type: Letterpress
Certification: CE/ISOQ

These machines we supply are famous for high quality,high efficiency,easy handling, and accurate color register with best price

 Application:

Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

Performance and Features:
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360°continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
9. Magnetic powder brake for unwinding tension control.magnetic powder clutch for rewinding tension control.

Technical Data:

Type

YT-2600

YT-2800

YT-21000

Max. Effective Printing Width

560mm

760mm

960mm

Max. Web Width

600mm

800mm

1000mm

Max. Printing Speed

50m/min

50m/min

50m/min

Max. Mechanical Speed

60 m/min

60 m/min

60 m/min

Max. Diameter of Roll Material

ф450mm

ф450mm

ф450mm

Internal Diameter of Roll Core

ф76mm

ф76mm

ф76mm

Rang of Repeat Printing Length

191-914mm

191-914mm

191-914mm

Accuracy of Registration

±0.5mm

±0.5mm

±0.5mm

Plate Thickness(Both side adhesive included)

2.38mm

2.38mm

2.38mm

Heating Power

4Kw

6Kw

8Kw

Total Power

8Kw

10Kw

12Kw

Weight of Machine

1800kg

200kg

2200kg

Overall Dimension

L2500×W1700×H2200mm

L2500×W1900×H2200mm

L2500×W2100×H2200mm


Two Color Flexo Printing Machine
