PE Double Color Strip Film Blowing Machinery from China manufacturer - Ruian Huabo Plastic Packaging Machinery Co., ltd.

PE Double Color Strip Film Blowing Machinery

Price:	4000.0~25000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SJ-45×2

Production Capacity: 15Set/Sets/Month

Delivery Date: 15-20 days

Model Number: SJ-45×2

After-sales Service Provided: Engineers available to serv...

Automatic: YES

Voltage: 220V/380V

Certification: CE/ISO9001

Means of Transport: Ocean

Packing: wooden case packing or plas...

Place of Origin: Zhejiang, China (Mainland)

Suitable material: HDPE,LDPE,LLDPE

Application: Film

Warranty: one year

Brand Name: HUABO

plastic film blowing machine price
This machine is used for blowing plastic film like HDPE,LDPE,LLDPE, etc.

Use:

The Double Die Head Two-Colour Striped Film Blowing Machine Set is composed with two screw stemsand cylinder with onedie head, it adopts the device of two different plastic materials, which can blow different kinds of striped vest bags (shopping bag), it can get colorful bags without pringting ,with such features as beautiful colors, average stripe, logical structure, advancedtechnology, even rewinding and high output.

Feature:

1. The full set machine is made of twosets main motors, two cylinders and one layer die head, feeding by two cylinders. Extruding with one die head one traction and rewinding device , it can improve the quality of striped film by adopting with one traction and one rewinding device.
2. The screw stem and cylinder ate made of 38CrMoAl high quality alloy steel after fine finishing and nitrided treatment, which has high hardness, strong resistance to corrosion, durable service.
3. The die head is plated with hard chrome ,of screw mandrel type structure with even and smooth discharging, the blown plastic film has fine finishing ,the blower is of labyrinth structure with even air output.
4. The coiling unit adopts pressure friction rewinding or center rewinding , which is driven by torque motor , with even and smooth rewinding and easy roll changing.

Technical Parameters:

Type	SJ-45×2	SJ-55×2
Diameter of Screw	45mm×2	55mm×2
Screw L/D Ratio	28:1	28:1
Screw Spead	10-110r/min	10-110r/min
Max.Output(kg/h)	45kg/h	60kg/h
Max.Layflat Width (mm)	550mm	650mm
Film Thickness(mm)	0.006-0.10mm	0.006-0.10mm
Power of Main Motor	11kw	18.5kw
Total Power	30kw	40kw
Weight of Machine	2200kg	3000kg
Overall Dimensions(L×W×H)mm	4800×2200×3600	5000×2400×4200

TERMS OF PAYMENT:

T/T OR IRREVOCABLE L/C AT SIGHT . 30% AS DEPOSITE, REMAINING COST BEFORE SHIPPMENT.

DELIVERY TERM:

15-25 DAYS AFTER RECEIPT OF ORIGINAL L/C OR RECEIPT OF 30% T/T DEPOSIT.

DELIVERY PORT:

CHINA NINGBO PORT

INSTALLATION:

OUR COMPANY COULD SEND ECHNICIANS FOR INSTALLATION, ADJUSTMENT, TRAINING FOR CUSTOMER, IF THE BUYER BEAR ALL THE CHARGE SUCH AS ROUND TICKET, ACCOMMODATION, FOOD ETC. THE BUYER ALSO NEED PAY SALARY TO OUR ENGINEER 70USD/DAY/PERSON.

GUARANTEE SYSTEM AND MAINTENANCE:

ONE YEAR GUARANTEE FOR THE MACHINES EXCEPT THE SPARE PART, WE WILL SUPPLY LIFELONG TECHNOLOGY SERVICE TO SOLVE ANY PROBLEMS FROM U. DURING THE GUARANTEE TIME, NOT BCZ OF MAN-MADE SABOTAGE, WE WILL CHANGE THE PARTS FOR FREE,BUT THE DELIVERY COST NEED BY BUYER.

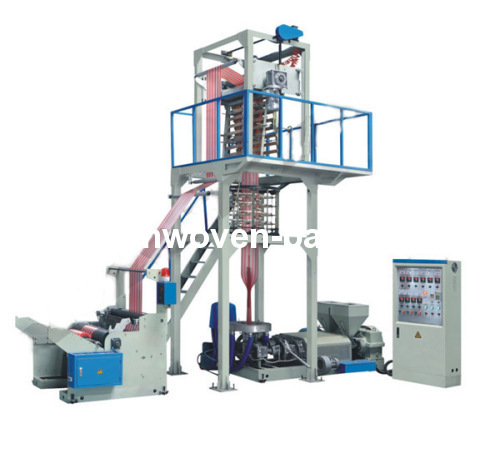

PE Double Color Strip Film Blowing Machine Set
